Retention Tanks

Progressive climate change generates an increasing number of extreme phenomena—from droughts to torrential rainfalls. Retention, meaning the ability to temporarily store water, is made possible by the Waterbase R line of flexible tanks. Well-organized retention provides not only the opportunity to reuse rainwater, improve the water balance, and reduce costs, but also limits localized flooding. Simple to install yet highly durable, the Waterbase R tank is a modern solution that requires no construction work and reduces necessary formalities to a minimum.

The flexible pillow design for water storage proves effective in numerous applications. In our line of industrial retention tanks (larger than standard, small residential retention systems), we have utilized materials with the highest durability, allowing us to offer a 10-year warranty. The DN80 inlet connection is designed to ensure adequate rainwater supply, while an additional Ø 15 cm flange allows for tank inspection and facilitates cleaning processes. Extraction from the tank takes place through a DN50 connection with a 2” valve, but we also offer the option to equip the tank with additional custom connections upon request.

Advantages – Retention Tanks

Dedicated to retention: A sealed retention tank is not classified as a water management structure (no water law permit required) and does not require a building permit.
Does not require construction work: A flexible tank primarily requires a flat and level surface. It can be deployed on grass, concrete slabs, or a sand bedding layer. It is not permanently anchored to the ground.
Installation in up to 30 minutes: After receiving the tank, simply unroll it in each direction and easily install the connections. Within 30 minutes, the tank will be ready for filling!
UV resistance: The PVC fabric is protected with a specialized lacquer that extends its lifespan during continuous exposure to UV radiation.
Easy to transport: The tank can be easily and quickly relocated.
Cold resistance: The tanks are resistant to sub-zero temperatures down to -30°C.
Custom-made tank: In addition to standard capacities, we offer custom-sized tanks tailored to fit precisely where you need them most. Custom quotes are free of charge.
10-year warranty: The tanks are covered by a 10-year warranty on leak-tightness.
HF Technology: The use of high-frequency (HF) welding ensures a durable bond of the fabrics in key areas of the product.
Made in Poland: We are a Polish enterprise engaged in the manufacturing of products made from flexible technical fabrics.
Durable fabric: A special technical fabric featuring a polyester mesh and a PVC blend coating provides the necessary strength.

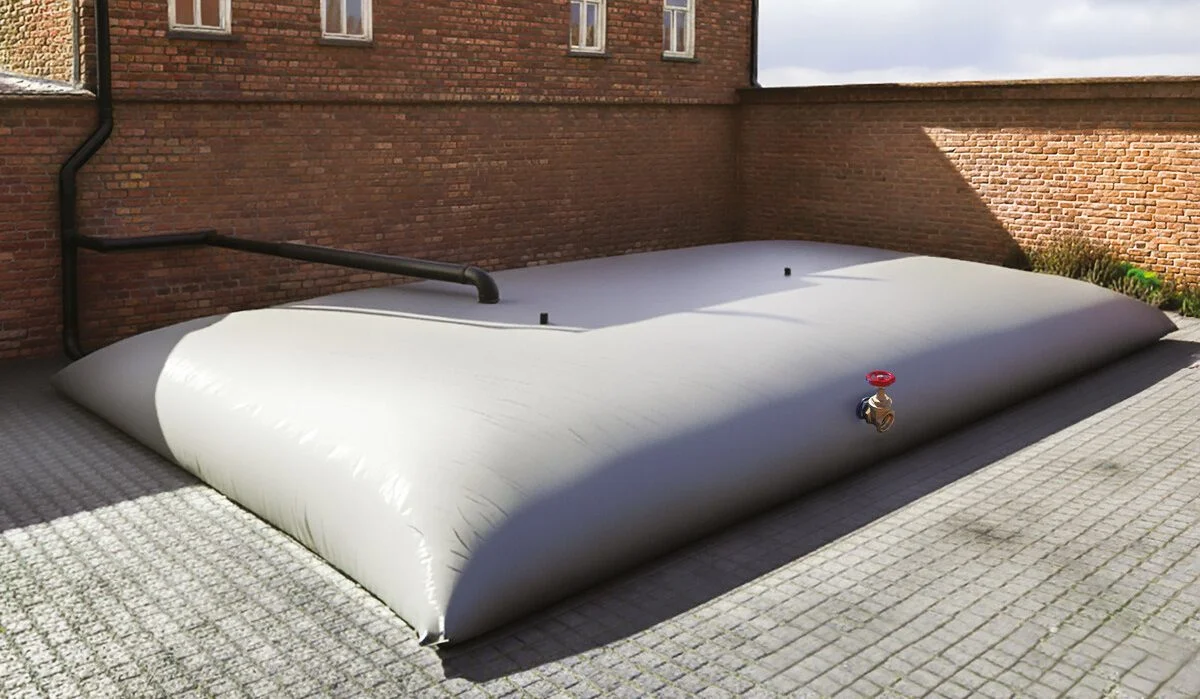

Waterbase R Retention Tank

The Waterbase R retention tank is a flexible and mobile water tank made of a special, multi-layer technical fabric coated with PVC, which ensures high strength and resistance to UV radiation and weather conditions. Its primary purpose is water retention—specifically, the rapid creation of storage for the temporary or permanent collection of liquids.

It is designed for the safe storage of rainwater, industrial water, graywater, and wastewater, helping to protect against drought and localized flooding. It can be easily deployed and assembled, providing an effective solution for water resource management.

Structure of the Waterbase R Tank

  • DN50 / 2” BSP Outlet Connection: Enables water extraction; equipped with an internal protective strainer, and an external valve with a Storz 52 coupling.
  • DN80 / 3” BSP Inlet Connection: A flanged connection with a 90° elbow and a Storz 75 coupling to connect the filling system.
  • Air Vent: Located at the top of the tank, it regulates internal pressure and serves an anti-overflow function.
  • Inspection Hatch (Ø 146 mm flange with cap): A wide flange that facilitates easy cleaning and inspection of the tank’s interior.
  • Reinforced Corners: Provide increased strength and durability at the most critical structural points.
  • UV-Resistant Material: The PVC fabric allows for safe year-round outdoor use and sun exposure.

Price List – Retention Tanks

We invite you to familiarize yourself with the equipment and parameters of our tanks. Free domestic transport!
If you wish to expand the tank with additional connections, please contact our technical advisors (Contact).

Capacity Size
(length x width)		 Equipment Maximum
height		 Weight
10 m³ 6.50 x 2.90 m Filling: 1 x DN80 female thread 3″ flange
with PP 3″ female-female elbow and Storz connection;
Emptying: 1 x DN50 female thread 2″ flange
with 2″ valve and Storz 52 connection;
Air vent: 2″ 1 pc,
Inspection port: fi 146mm flange with nut,
Anchoring handles;		 0.8 m 63 kg
15 m³ 5.90 x 4.45 m 0.8 m 83 kg
25 m³ 6.00 x 5.90 m 1.0 m 107 kg
50 m³ 10.00 x 5.90 m 1.1 m 171 kg
75 m³ 9.20 x 8.90 m 1.2 m 232 kg
100 m³ 11.20 x 8.90 m 1.2 m 280 kg
150 m³ 11.80 x 11.80 m 1.4 m 387 kg
200 m³ 15.10 x 11.80 m 1.4 m 491 kg
250 m³ 18.50 x 11.80 m 1.4 m 599 kg

Flexible Solutions Tailored to Customer Needs

We offer the possibility of customizing retention tanks to meet individual customer needs, allowing for the optimal use of available space. Flexible water retention tanks can be quickly deployed in various locations, which is particularly crucial in areas with rapidly changing conditions. This individualized approach also enables a rapid response to sudden changes in the event of unforeseen weather events.

Cooperation with a Retention Tank Manufacturer

Choosing an experienced tank manufacturer ensures access to high-quality products that meet the latest standards and are tailored to individual customer needs. Our retention tanks are designed with durability, versatility, and ease of installation in mind, making them an excellent choice for a wide variety of applications.

Application of Rainwater Retention Tanks in Households

Rainwater retention tanks provide an ideal solution for households looking to manage their water resources efficiently. They enable the collection of rainwater, which can then be reused for other purposes. By investing in a water retention tank, you can not only reduce water utility costs but also support eco-friendly initiatives by lowering the demand for drinking water.

Retention Tanks vs. Protection Against Drought and Flooding

We are increasingly faced with extreme weather conditions, including prolonged droughts and torrential rainfalls. Retention tanks help protect against flooding by storing water during periods of heavy precipitation. Installing rainwater retention tanks is highly recommended to reduce the risk of localized flooding and to secure water resources for dry periods.

Retention Tank Rental — A Flexible Solution Tailored to Your Needs

It is also worth considering water tank rental as a flexible option for water management during periods of increased demand. This service allows for the quick and convenient adaptation of retention solutions to current conditions without the need for long-term capital investments. Rental water retention tanks are a practical solution for both private users and companies that need to temporarily increase their retention capacity.
