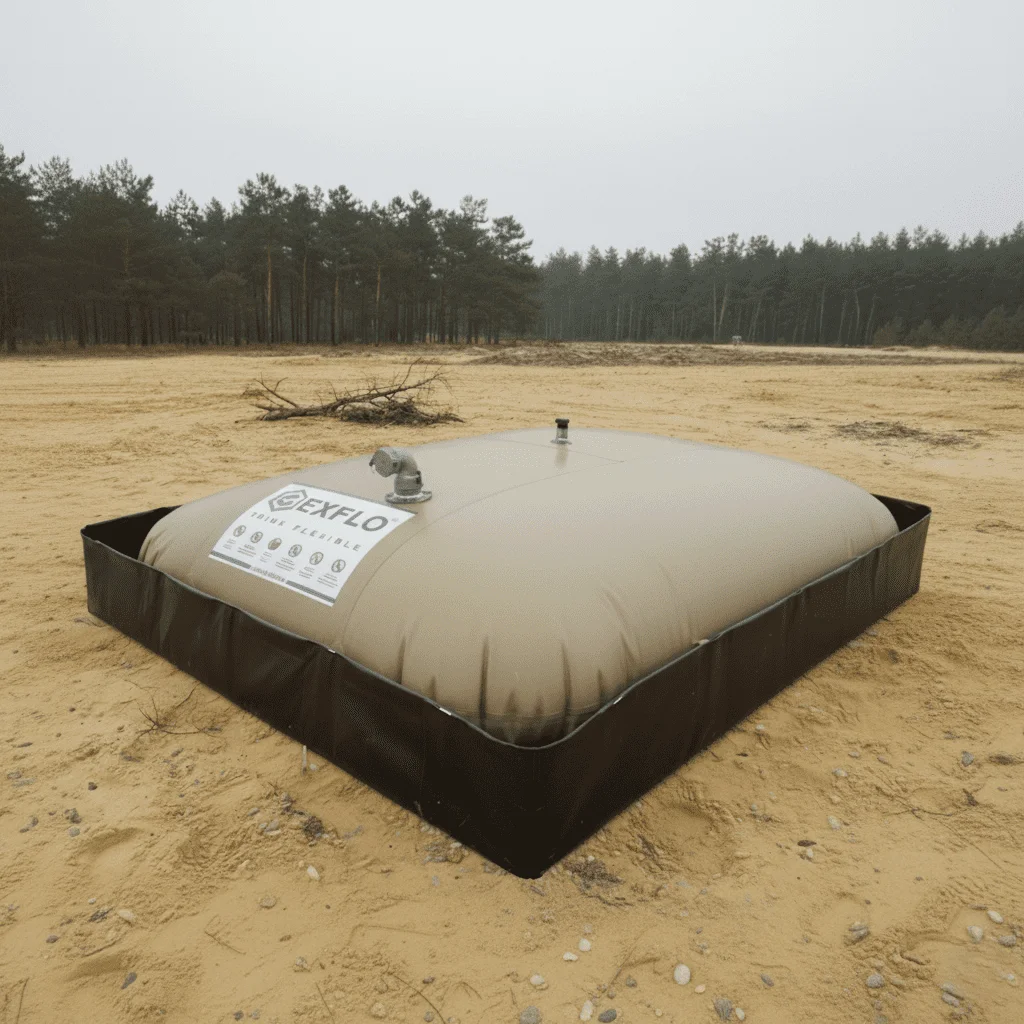

Fuel tank
Fuel tank - connection
Fuel tank
Fuel tank - connection

Flexible fuel tanks

testuje se additional info

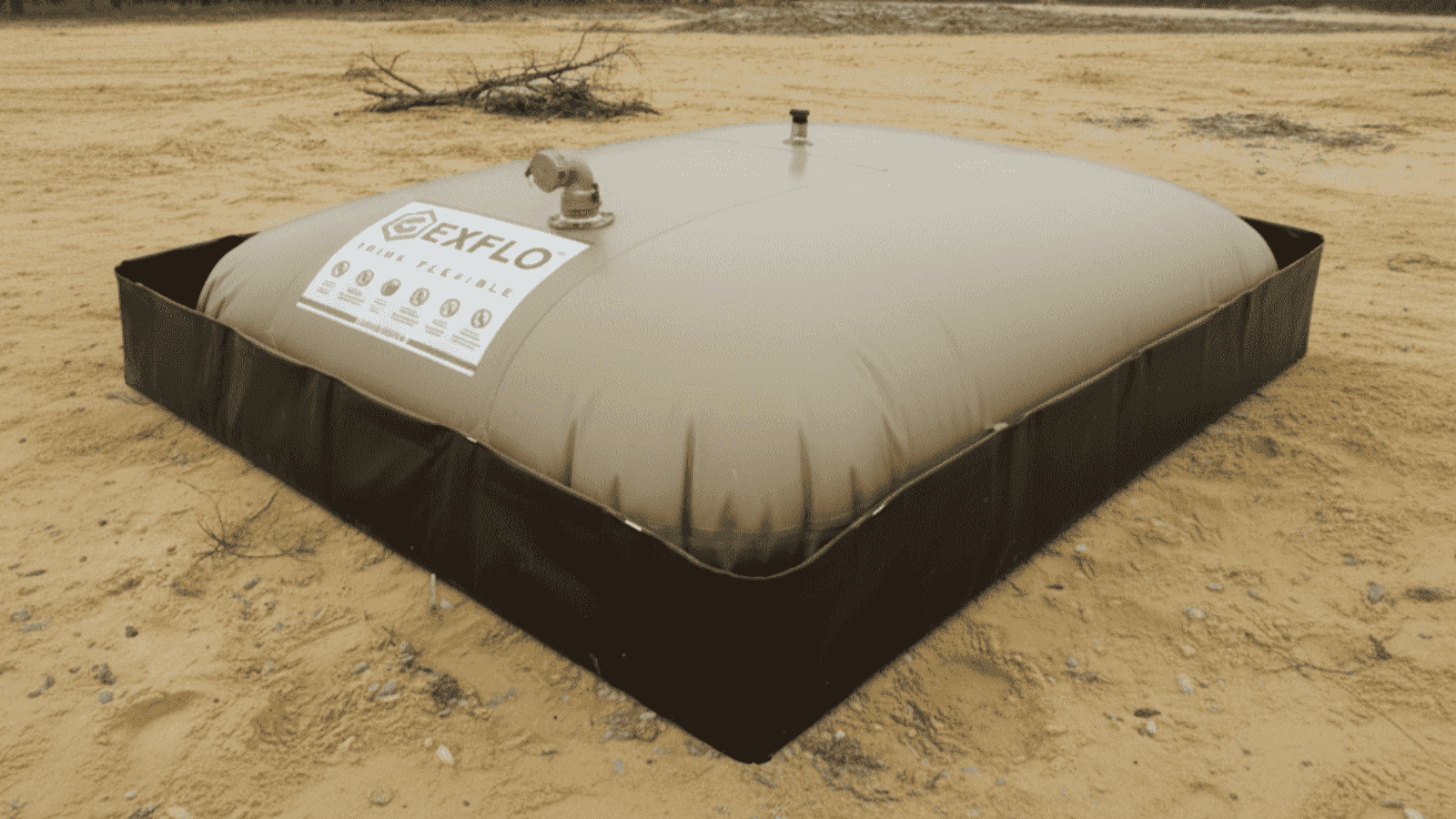

Exflo Fuelbase tanks allow for a quick response to installation failures or the sudden need to create a liquid fuel storage facility. The series offers solutions tailored to various applications:

– XSD version (civilian): for the temporary storage of diesel and heating oil with a capacity of up to 950 liters.
– Specialized versions (MIL): for gasoline, JP-8 and Jet A-1 aviation fuels, and F-grade marine fuels (NATO F-75), designed in accordance with MIL-T-52983G and MIL-PRF-32233C standards. Production for these tanks is undergoing certification, with deliveries possible from 12/2025.

The self-supporting structure ensures quick assembly without the need for foundations. The tanks must be placed in a spill containment bund with a capacity of at least 110% of the tank’s volume. They are made of technical fabrics coated with thermoplastic polyurethane (TPU) featuring antistatic properties and UV resistance. The special shape eliminates the risk of leaks, and robust connections with quick-release couplings ensure efficient filling. When folded, they occupy only a few percent of their total volume, facilitating transport. Available colors: beige, grey, or black. Produced on-demand for both civilian and military markets.

Advantages of fuel tanks

Dedicated to fuels
Dedicated to fuels

Flexible, leak-tight, and mobile tank made of specialized components.

Confirmed leak-tightness
Confirmed leak-tightness

Each tank undergoes testing conducted by UDT, confirming its leak-tightness.

HF technology
HF technology

The use of High Frequency (HF) welding ensures a durable connection of fabrics in the key areas of the product.

Easy storage
Easy storage

When folded, the tank takes up little space and can be safely stored on a warehouse shelf.

Full mobility
Full mobility

The product is mobile and can easily be moved to a critical location.

Installation up to 30 minutes
Installation up to 30 minutes

The tank simply needs to be unfolded in all directions and the connections easily installed.

Custom-made tank
Custom-made tank

In addition to standard capacities, we offer custom-made tanks.

Comprehensive solution
Comprehensive solution

We offer full sets of additional equipment for the tank, including spill containment bunds.

2 years warranty
2 years warranty

Tanks are covered by a 2-year leak-tightness warranty.

Polish manufacturer
Polish manufacturer

Polish production is a guarantee of quality, fast service, and technical support.

Construction of flexible fuel tank

  1. DN80 (3”) connection equipped with a 90° elbow, terminated with a 3” male Camlock coupling.
  2. DN50 (2”) connection with a vapor recovery system + DN150 inspection hatch.
  3. Sheathing – the tank’s shell/lining.
  4. Manufacturer’s marking, identification plate.
  5. Mounting handles/brackets.
  6. Additional DN50 (2”) drain connection, capped/blanked off.
Fuel flexible tank - equipment

Tank Construction – Fuelbase XSD Version

  • DN50 (2″) connection with air vent – an aluminum connection that ensures proper ventilation of the tank.
  • DN50 (2″) fill/discharge connection – a flanged and threaded port with a 1″ reducer, equipped with a valve, 90° elbow, and a female Camlock quick coupling with a dust cap.
  • Multi-layer technical fabric with TPU – a durable fabric coated with thermoplastic polyurethane featuring antistatic properties.
  • Internal suction strainer – prevents the fabric from being sucked in during fuel withdrawal.
  • Reusable protective cover – protects against dirt, UV radiation, and contains spills after disassembly.
  • Self-supporting structure – does not require permanent ground anchoring or support structures.
Illustrative image

Price List – Fuelbase XS Flexible Tanks

Check the dimensions, capacities and equipment of our tanks for temporary diesel storage. If you have any questions, please contact our technical advisors.

Size
(length x width)		 Capacity
(l)		 Tank equipment
1.89 x 0.80 m 200 l

BASIC:
– Emptying / filling: 1 pc – connection with internal thread in the upper sheet of the tank, 1″ valve, 90° elbow, finished with 1″ Camlock F coupler with dust cap
– Air vent – 1 pc.
– Cover – 1 pc.

RECOMMENDED ADDITIONAL ACCESSORIES:
– Spill bund providing secondary containment, capable of freely accommodating the tank and preventing leaks of min. 110% of the tank capacity
1.89 x 1.40 m 500 l
1.89 x 1.90 m 900 l

Final dimensions and equipment of the tank are specified in the sales document (invoice). Exflo offers modifications (of dimensions, capacity, equipment) upon customer’s request.

For pricing and more details, please contact us at +48 602 241 000, email contact@exflo.eu, or use the contact form available in the “Contact” section. We’re happy to help you find the best solution.

Contact

Trust the Fuel Tank Manufacturer with Experience

As a fuel tank manufacturer, we focus on strict quality control to deliver products that meet even the most rigorous standards. The fuel tanks we offer are not only durable but also economical, making them the perfect choice for anyone looking for affordable fuel tanks without compromising on quality.

Mobile Fuel Tanks – The Key to Efficiency

In today’s fast-paced world, mobility is crucial. Our mobile fuel tanks provide an excellent solution for businesses that need to respond quickly to changing conditions. Our mobile diesel tanks are easy to transport and install, significantly reducing both time and costs.

Fuel Tanks – A Guarantee of Quality

As a manufacturer of tanks, we ensure that our products, including aviation fuel tanks, meet the required military safety standards. Each fuel tank is thoroughly tested, ensuring its reliability and safety in use. Our affordable fuel tanks are made from materials specifically designed for fuel storage, guaranteeing their safe and long-lasting use. Additionally, in the event of damage, each tank can be easily repaired, extending its lifespan.

Solutions Tailored to Customer Needs

We offer the option to customize fuel tanks according to individual requirements. Large fuel tanks can be designed and manufactured to order, ensuring that each customer receives a product perfectly suited to their needs.
